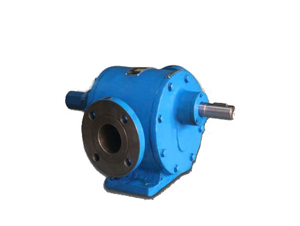

External Gear Pump ( Big Size)

Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filtration application. Inquire Now

Product Code : DP00CS
  • Capacity: 550 to 3200 lpm
  • Delivery pressure upto: 10kg/cm2
  • Pump having flanged end connection.
  • Provided with inbuilt relief valve
  • aterial of Construction: Cast Iron, Cast Steel, SS 304, SS 316, Gun Metal
  • Liquid handled from low to high viscous range.
  • Heavy duty construction pump having large case suctional thickness for long
  • Used in loading unloading of liquids, storage of liquid, transfer, high pressure application
  • Used in chemical industries & petrochemical plants & refineries
  • Pump available from size 1 1/2" to 6".
  • Pumps available in C I, Cast Steel, SS304, SS316, Monel
  • Capacity: 120 lpm to 2300 lpm
  • Sealing: Gland Packing/ Mechanical Seal
  • Pump Provided with inbuild relief valve
  • Useful for low to high viscocity liquid transfer
  • High Temperature: can be used for pumping hot liquid upto 1800 C

Standard Specification For "Dhara Pumps" Rotary External Gear Pumps

No Pump Model MAXIMUM CAPACITY IN LPM AT 0 PSI NOZEL SIZE RPM PRESURE Vs. H.P. TABLE (PRESURE IN PSI)
1 DP 100 120 1½" 1440
2 DP 200 235 2" 1440
3 DP 350 375 2½" 1440
4 DP 500 550 3" 1440
5 DP 700 750 3" 1440
6 DP 1000 1100 4" 960
7 DP 1500 1600 4" 960
8 DP 2000 2100 6" 960
